HMNLIFT Electric Flip Series HP-DF
Load weight: 1500~3000KG,
Power system: AC208-460V (±10%)
Features: It is suitable for hoisting and hoisting of large and ultra-large glass sheets in factories; high-precision worm gears are used to acheive 0-90° electric flipping of the glass, and a German brand large-flow vacuum pump is used, which has large flow, fast suction, high vacuum degree, and easy operation. Simple and convenient; AC connection is suitable for long-term uninterrupted operation.
Equipment use site
Product Parameter
|
Product&Model |
Safety Loading |
Size (mm) |
Sucker Diameter (mm) |
Sucker Number |
Power System |
Control Mode |
Function |
|
HP-DF1500-16S |
1500kg |
6250×1750 |
Φ300 |
16pcs |
AC208-460V (±10%) |
Wireless Remote |
0-90 ° Electric Flip |
|
HP-DF2000-20S |
2000kg |
（2125+6000+2125）×1750 |
20pcs |
||||
|
HP-DF3000-30S |
3000kg |
（3125+6000+3125）×1750 |
30pcs |
video

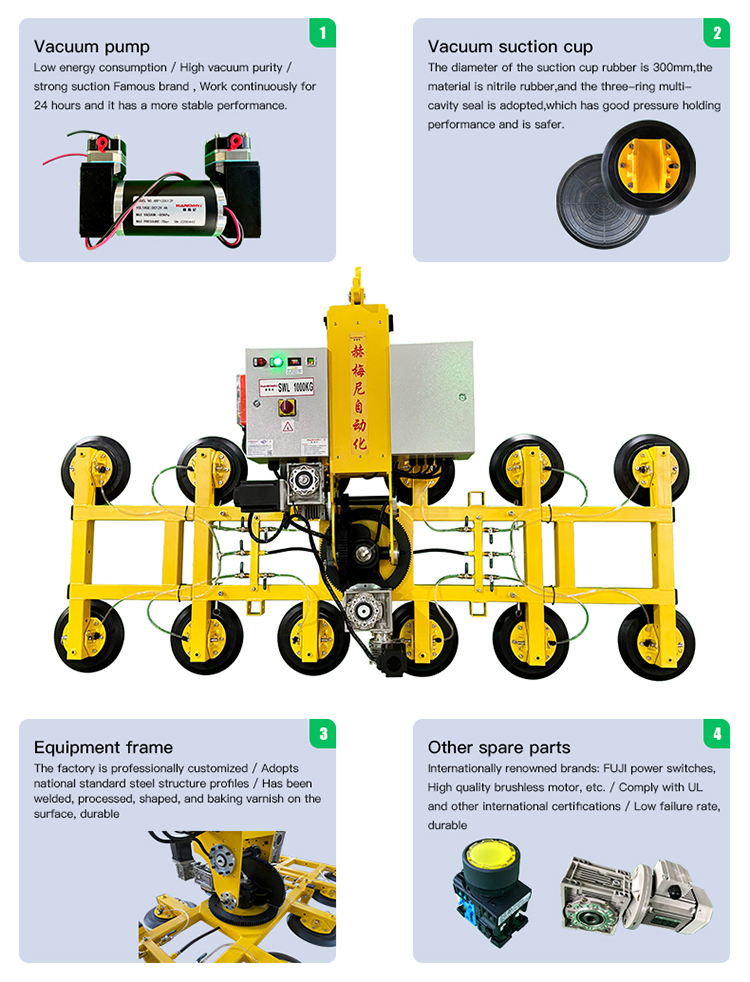

Main Components Of
Part Details
|
No. |
Parts |
No. |
Parts |
|
1 |
Lifting Ring |
11 |
Turn-over Reducer |
|
2 |
Battery Control Box |
12 |
Turn-over Brushless Motor |
|
3 |
Vacuum System |
13 |
Remote Receiver |
|
4 |
Vacuum Suction Cup |
14 |
Power Switch |
|
5 |
Main Frame |
15 |
Electrodynamic System |
|
6 |
Vacuum Hose |
16 |
Vacuum Indicator Lamp |
|
7 |
Rotary Brushless Motor |
17 |
Alarm Lamp |
|
8 |
Rotary Speed Reducer |
18 |
Power Indicator |
|
9 |
Rotary Gear Set |
19 |
Vacuum Pressure Sensor |
|
10 |
Turn-over Gear Set | ||
Product Packaging
Use The Scene
Our Factory
Our Certificate
Please leave your contact information and requirements
We will contact you as soon as possible
FAQ
-
1: How to place an order?
Answer: Tell us your detailed requirements (including your product materials, product dimensions and product weight), and we willsend you detailed parameters and quotations as soon as possible.
-
2: What is your price?
Answer: The price depends on your requirements for the equipment. According to the model, the price is relatively different.
-
3: How should I pay?
Answer: We accept wire transfer; letter of credit; Alibaba trade guarantee.
-
4: How long do I need to order?
Answer: The standard vacuum suction cup spreader, the delivery time is 7 days, custom-made orders, no stock, you need to determinethe delivery time according to the situation, if you need urgent items, please contact customer service.
-
5: About the guarantee
Answer: Our machines enjoy a complete 2-year warranty.
-
6: Mode of transportation
Answer: You can choose sea, air, rail transportation (FOB, CIF, CFR, EXW, etc.)
