Harmony brand HMNLIF SFX series vacuum hoisting equipment is suitable for glass, marble, composite panels, etc. It is a medium-sized vacuum hoisting equipment with multiple functions, which improves the production efficiency and reliability of construction sites and manufacturing workshops.
The equipment is divided into 3 types, load-bearing 400kg, load-bearing 600kg, load-bearing 800kg, 90 ° flip, 360 ° rotation. The devices can be assembled in many different shapes, for small or large glass panels, and for indoor or outdoor use.
Equipment use site
Product Parameter
|
Product&Model |
Safety Loading(kg) |
Size(mm) |
Sucker Diameter(mm) |
Sucker Number(PCS) |
Power System |
Control Mode |
Function |
|
HP-SFX400-4S |
400kg |
900×730×240 |
Φ300 |
4 |
DC12V |
Manual / Remote |
0-90°Manual Flip +0-360° Manual Rotation |
|
HP-SFX600-6S |
600kg |
1800×1190×240 |
Φ300 |
6 |
DC12V |
Manual / Remote |
|
|
HP-SFX800-8S |
800kg |
1800×1190×240 |
Φ300 |
8 |
DC12V |
Manual / Remote |
video
Main Components Of
1
Vacuum pump
Low energy consumption / High vacuum purity / strong suction Famous brand , Work continuously for 24 hours and it has a more stable performance.
2
Vacuum suction cup
New upgraded vacuum suction cup Three sealing rings can prevent air leakage and maintain pressure for a long time.
3
Battery CSB batten
Super high quality, stable voltage, sturdy and durable reliable quality.
4
Electric control box
The electric control box adopts stainless steel fastener , digital pressure visualization , intelligent control of vacuum pressure
Other Accessories
If you have already purchased a vacuum spreader,although their parts are good,this is probably the first item that needs maintenance,you can choose spare parts for these parts for your vacuum spreader.

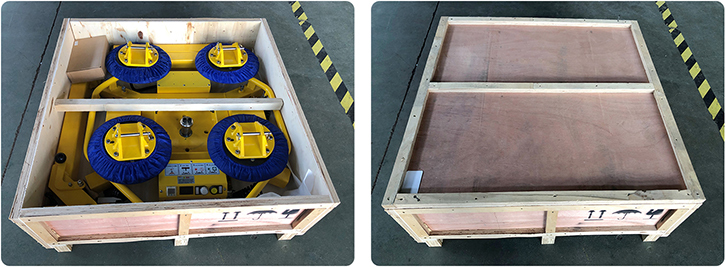

Product packaging
Use The Scene

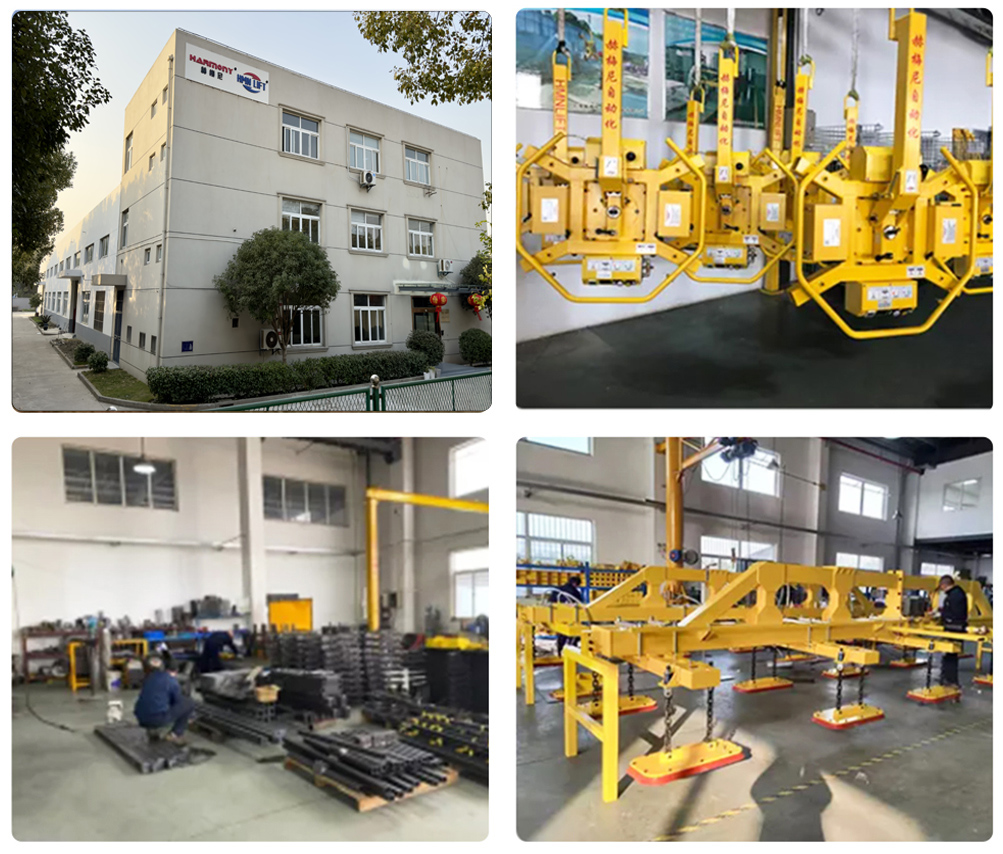

Our Factory
Certificate
Please leave your contact information and requirements
We will contact you as soon as possible
FAQ
-
1: How to place an order?
Answer: Tell us your detailed requirements (including your product materials, product dimensions and product weight), and we willsend you detailed parameters and quotations as soon as possible.
-
2: What is your price?
Answer: The price depends on your requirements for the equipment. According to the model, the price is relatively different.
-
3: How should I pay?
Answer: We accept wire transfer; letter of credit; Alibaba trade guarantee.
-
4: How long do I need to order?
Answer: The standard vacuum suction cup spreader, the delivery time is 7 days, custom-made orders, no stock, you need to determinethe delivery time according to the situation, if you need urgent items, please contact customer service.
-
5: About the guarantee
Answer: Our machines enjoy a complete 2-year warranty.
-
6: Mode of transportation
Answer: You can choose sea, air, rail transportation (FOB, CIF, CFR, EXW, etc.)
