HMNLIFT Vacuum Lifter For Sheet Metal
The equipment adopts AC208-460V (±10%) power system, which is suitable for laser cutting and feeding, especially for the poor surface condition of the plate and the working condition of long-term uninterrupted operation; the suction speed is fast, the vacuum degree is high, and the equipment life is long.

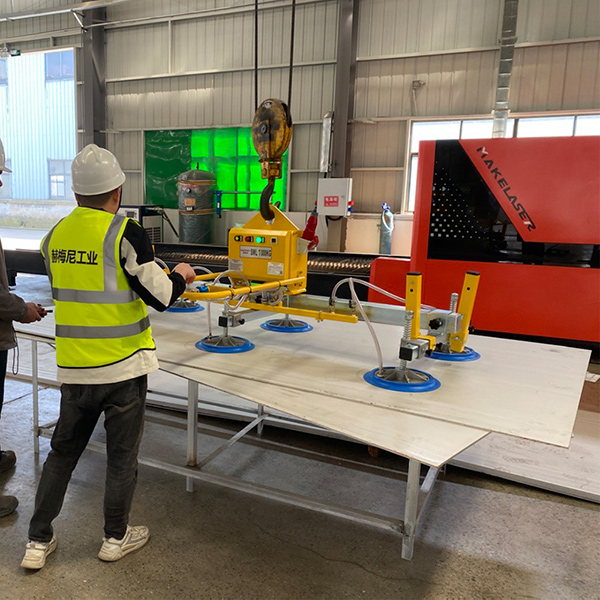

Equipment use site
Product Parameter
|
Product&Model |
Safety Loading |
Size(mm) |
Sucker Diameter |
Sucker Number |
Power System |
Control Mode |
Dead Load |
|
HP-BSJ500-6S |
500kg |
2000×800×720 |
Φ230 |
6 pcs |
AC208-460V (±10%) |
Manual / Remote |
120kg |
|
HP-BSJ1000-6S |
1000kg |
2000×800×720 |
Φ300 |
6 pcs |
125kg |
||
|
HP-BSJ800-8S |
800kg |
2800×800×720 |
Φ230 |
8 pcs |
140kg |
||
|
HP-BSJ1500-8S |
1500kg |
2800×800×720 |
Φ300 |
8 pcs |
150kg |
||
|
HP-BSJ1000-10S |
1000kg |
(1000+3000+1000)×1000×950 |
Φ230 |
10 pcs |
250kg |
||
|
HP-BSJ2000-10S |
2000kg |
(1000+3000+1000)×1000×950 |
Φ300 |
10 pcs |
260kg |
||
|
HP-BSJ2500-12S |
2500kg |
(1000+3000+1000)×1000×950 |
Φ300 |
12 pcs |
280kg |
video
Main Components Of
Part Details
|
No. |
Parts |
No. |
Parts |
|
1 |
Supporting Feet |
9 |
Vacuum Pump |
|
2 |
Vacuum Hose |
10 |
Beam |
|
3 |
Power Switch |
11 |
Main Beam |
|
4 |
Vacuum Pump |
12 |
Remote Control Tray |
|
5 |
Lifting Ear |
13 |
Push-Pull Valve |
|
6 |
Warning Light |
14 |
Shunt |
|
7 |
Pressure Switch |
15 |
Ball Valve |
|
8 |
Power Connector |
16 |
Suction Pads |
